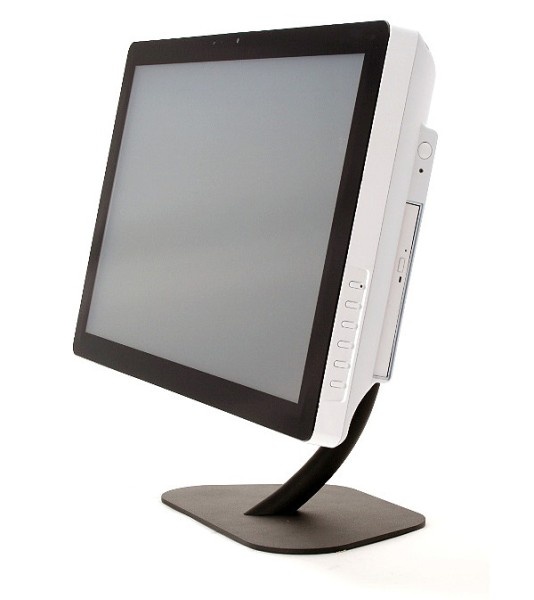

All-in-One WT19 is ideal solution to be used as an in-store sign to present constantly changing, computer generated, full motion video, photo-realistic graphics, text, and animation. It is a dynamic venue as opposed to static billboards and posters. Touchscreen is optional
Key Features:
- Build in standard VESA Screw Hole. (100x100mm)
- Big Panel Size & High Resolution for HD Content.
(Dual Core CPU Atom 330 performance ≧ 720P band width <15M/s) - Hard panel protection and no frame design.
- Support dual monitor function. (Internal + External VGA output)
- Support monitor function.
(It can use anyone PC, internal PC + External VGA input for other PC) - AC Adaptor and Cable Management
- Expansion Slot (mini Card )
- Easy set-up (Horizontal/Vertical) / maintenance (Module Design)
- Flexible & ergonomic by VESA hole solutions
- No vent hole on top side. (prevent some dust from top size)
- Slim Bezel and Frame-less
- Option Touch Screen KIT.
Specifications:
- Atom Dual Core 330 1.6G CPU
- Chipset: North Bridge: Intel 945GC + South Bridge: Intel ICH7
- Memory support Lonf-DIMM DDR2 x 1 up to 2G
- Intel GMA 950 graphics
- Realtek 10/100/1000 LAN
- ALC662 Audio
- ACAdaptor 19V/90W
- Rear Side I/O
- VGA output connector x1
- USB 2.0 *2
- LAN RJ45 *1
- 5.1 CH Audio Jack (horizontal x 3)
- DC 19V (AC Adaptor 19V/90W)
- VGA input connector x 1 from AD Board
- VGA output connector x 1 from motherboard (for dual display)
- AOpen proprietary thermal module
