Product • 25.03.2009

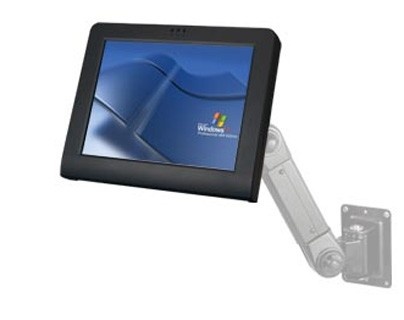

Ultra-compact fanless Panel PC-EZPPC 712
EBN Technology has released the innovative ultra-compact fanless Panel PC-EZPPC 712. The EZPPC 712 is a panel computer designed without a fan, which makes it as an ideal solution for requesting low noise operating environments and space-limited applications.
The World's No.1 Ultra-compact Panel PC
EZPPC 712 is special designed with small footprint ( 256 x 55 x 313 mm) and it can be fitted into limited spaces for smart space management cases. In addition, EZPPC 712 supports VESA mounting standard (75 x 75mm and 100 x 100mm) which makes EZPPC 712 could be mounted on the wall or fit into compact sapce for various installations. The height of EZPPC 712 is only 55 mm, the ultra-compact design empowers the world's No.1 ultra-compact Panel PC for numerous applications, especially for the space-limited environments.
Intel Low Power Consumption Technology
Come with compact 12.1'' TFT panel and 5-wire resistive touch screen, EZPPC 712 features Intel Celeron M 1.0GHz CPU delivering high performance to meet most of requirements from current and future applications. Thanks for the Intel low power consumption technology, is the ideal fanless system that users don't need to worry about the risk to changing system fan. By the 5-wire touch screen, creates a user friendly interface that may be applied to diverse industrial computing platforms, ranging from factory and point of information solutions or table ordering systems.
Support Various Installations
EZPPC 712 supports up to 1GB system memory and 1x 2.5'' HDD, 1x Compact Flash as storage device to meet most of requirements from current and future applications. By the rich interface, 1 x Compact flash as EZPPC 712 supports 4 x USB 2.0, 4 x COM, 1 x printer port, 1 x Gigabit Ethernet ports enables EZPPC 712 to being different kinds computing platforms such as information display / data collection / ticketing system or the table ordering platform.
EZPPC 712 Features
- Apply for Intel low power consumption technology for maintenance-free fanless thermal solution.
- Durable chassis and small footprint to fit into various space-limited installations.
- Features 12.1'' touch panel provides a friendly touch experience.
- Supports 4 x USB 2.0, 4 x COM, 1 x printer port, 1 x Gigabit Ethernet port to be the best platform for various applications.
