Product • 25.03.2008

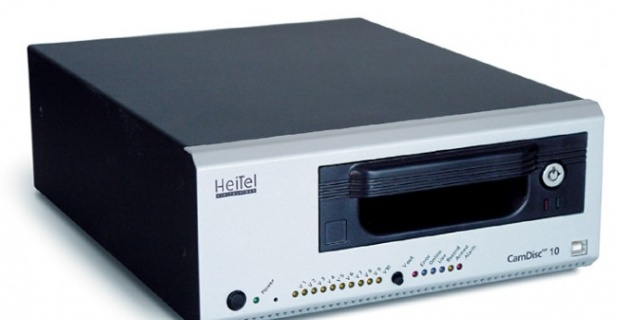

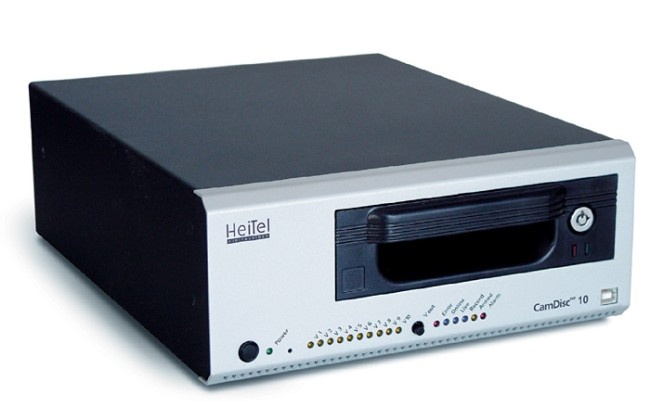

CamDiscSVR - Digital video transmission system with local long-term recording
Digital video transmission system with local long-term recording for 4 or 10 cameras
- Long-term recording onto removable hard disk drive with adaptive multi-track management for schedule-controlled permanent and motion recording, or contact-triggered event recording
- s version offers real-time video recording
- Individually adjustable image resolutions up to 720 x 288 pixels
- Integrated Multi-Unicast server supporting multiple IP network connections and simultaneous dial-up connections
- Integrated Web server for up to 4 IP-connections, enabling video transmission and camera control on a PC/Smartphone/Handheld using standard Web browser
- HTconnect enables unrestricted, but safe access over the Internet to Firewall protected video systems (also with dynamic IP addresses) in private nets. Additionally HTconnect controls permanently the availability of the entire system from public net over private net to video transmitters
- Up to 5 privacy zones per camera, configurable for live images or live and recorded images
- Precise recording of pre and post alarm images, individually adjustable to camera and event
- Event-triggered connections by alarm contact, motion detection, serial command, technical alarm, and routine call
- Perfected for alarm verification and conformity with monitoring centre applications
- Full-duplex voice communication via bidirectional audio transmission
- Integrated interfaces for Ethernet network, PTZ control, data transmission, and system integration
- Extensive remote control functions to control lighting, barriers, alarms, doors, or any relay-controlled devices
- Compact design, suitable for desk, wall and 19" mounting
- Multi-criteria evaluation of recordings via IP and/or dial-up connection, or in offline mode, via PC caddy
- Live video transmission and simultaneous playback and recording (Triplex)
- Optional audio recording onto removable hard disk drive
- Optional camera-selective recording of POS and ATM data, time-synchronised with video recording
