DE2700 is the easy-to-assemble Digital engine with built-in processor and memory. It is an ideal turnkey solution for digital signage and kiosk applications. It is positioned at the value segment market with affordable pricing.

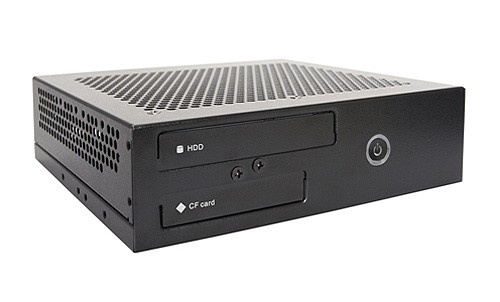

The main feature of AOpen Quick Silver DE2700 is the easy assembly process. This Digital Engine has an Atom N270 processor and 1 GB DDR memory pre-installed on board. Additionally, it is equipped with a quick bay on the front panel for 2.5-inch SATA hard-disk and CF slot. This allows to slide in the hard disk during the assembly, without opening the case. HDD and CF card with pre-loading OS and signage software made by SI/VAR can be inserted easily by end-customers without any hassle.
- Chipset: Intel 945GSE/ICH7M
- Intel ATOM N270 1.6Ghz CPU Embedded
- FSB: 533MHz
- Memory: DDR-II 1G SO-DIMM 533 MHz (default)
- Onboard VGA: Integrated GMA 950GSE
- 1 x Mini Card slots
- Gigabit LAN
- 1 SATA
- External DC19V/65W PSU

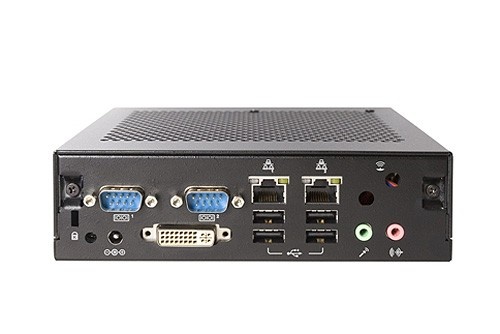

- Special features: DC12V~19V Input, fanless, Dual LAN, Dual RS232
