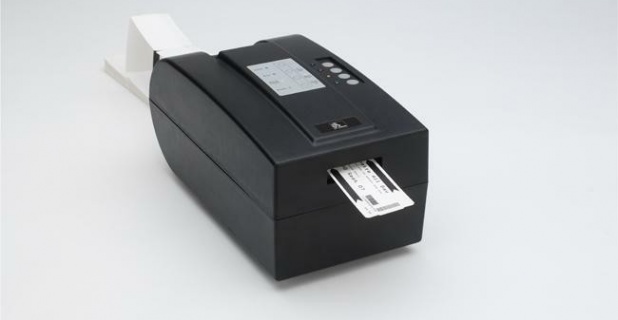

TTPM3 - Fast Ticket Printer / Magnetic Stripe Encoder
New Superfast & Compact Ticket Printer / Magnetic Encoder
When the queue has lined up in front of the sales counter or the ticket kiosk, you need to rely on that your tickets are produced hassle free and swiftly. The new Zebra TTPM3 Ticket Pinter / Encoder features unmatched performance in terms of its speed, reliability and security.
A Ticket Every Second
TTPM3 issues tickets at a rate of superfast 1.9 seconds per ticket when set in standard mode. Switching to “peak-hour-mode” cuts the time down to an amazing 1 second per ticket. During that time, TTPM3 has encoded the magnetic stripe, verified it, cut, printed and finally ejected the ticket. For the fastest throughput, TTPM3 encodes and verifies the ticket on 1, 2 or 3 tracks simultaneously. The ticket validity is fully guaranteed thanks to the 100% ticket verification.
The magnetic reader can also be accessed through the front which allows for reading media, such as “Loyalty Cards”, before issuing tickets. The optional waste basket function disposes used or invalid tickets into an internal bin to avoid littering or abuse.
Advanced Durability
TTPM3 adds value with its expanded functionality and unrivaled reliability. It is built to withstand an issuing rate of up to 5 000 tickets per day. To top the endurance and further extend the service intervals, TTPM3 is equipped with a thermal print head with a new diamond-like coating. The “diamond” protection effectively resists scratches on the print head and reduces static electricity. For the harshest environments there is an optional ceramic coating on the magnetic write head to decrease wear and tear even further.
The functionality of TTPM3 also includes changing from High and Low Coercivity with a simple switch. The choice is easily set through the variable encoding energy on the magnetic module. TTPM3 requires no consumables and allows you to choose between fanfold, loose-leaf or roll ticket stock.
Specifications
- 1.9s / issued ticket
- (1s in peak-hour-mode)
- TCP-IP Network interface (optional)
- Long-life design for easy maintenance
- Up to 3-track simultaneous Magnetic encoding, 100% verification and reading.
- HiCo & LoCo
- Credit Card size (54x86mm) or longer tickets
