Product • 21.10.2011
miniPC: RT 816

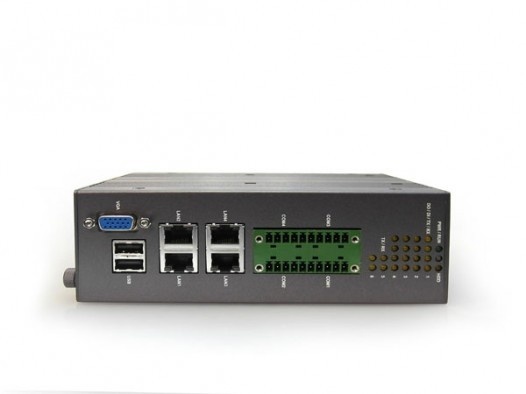

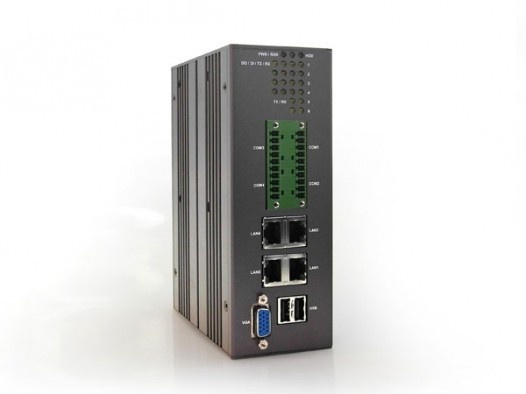

The DIN rail miniPC comes with six serial, four Gigabit LAN and eight DI/DO interfaces. The rotating DIN rail bracket as well as easily accessible Compact.
Flash card slots make maintenance and loading of new solutions even easier. Driven by Intel's highly efficient ATOM (N450) 1.6 GHz processor, the miniPC 816 does not require a fan. Numerous well visible indicator lights continuously indicate the current status.

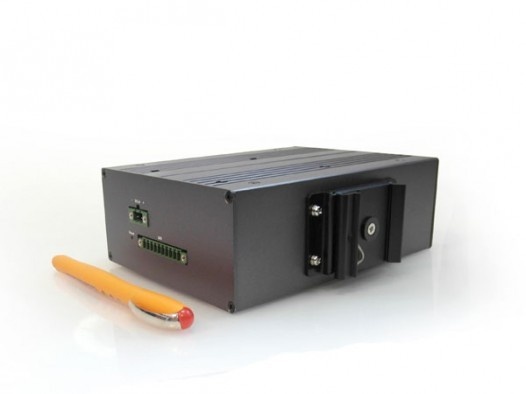

Besides its small form factor, the miniPC 816 features 6 COM as well as four Gigabit LAN and eight digital input and output interfaces. In addition, importance was attached to fast and tool-free device maintenance. For example, the DIN rail bracket can be rotated and removed and the CompactFlash card slot is easily accessible from the outside.
The mini PC is powered by Intel's energy-efficient N450 ATOM processor with1.6 GHz, which due to its low power consumption (5.5 W) only requires passive cooling.
Its internal design without fan and almost no cables excludes two main error sources and thus, ensures long and maintenance-free runtimes. Therefore, when SF cards or SSD memories are used, no moving parts can be found in the miniPC 816. If industrial components are used, it even runs reliably at operating temperatures from -20 °C to +55 °C.
An Overview of the Most Important Features:
- 6x RS232/422/485 Serielle Slots
- Intel ATOM 1,66GHz (N450) Processor
- Intel ICH8M Chipset
- Mounting / Rail by DIN
- Front Control LEDs for Easy Maintance
- 4 x 10/100/1000 Mbps LAN
- CompactFlash Type I/II
- Cable free interior
-
8 Lines of programmable DIDO
Application Areas:
- In production and the automation industry
- Ideal for installation in control cabinets
- SCADA Systems
- Monitoring and Controlling
| Product | miniPC 816 |
| Processor |
Intel® ATOM 1,66 GHz N450 |
| Fan | - |
| RAM | 1GB - 2GB |
| FlashROM | CompactFlash Type I/II |
| Serial | 6x |
| USB 2.0 | |
| extern | 2x |
| intern | 2x |
| Operating System |
Win Embedded, Win 7, XP Pro. |
| VGA | 1x |
| Stereo | in/out 1/1 |
| DIDO | 4x DI, 4x DO |
| LAN | 4x Gigabit |
| Resolution | 1400 x 1050 |
| AC/DC Adapter |
+12v ~ 36V DC in 60W Adapter |
| Operating Temperature | -20°C ~ 55°C |
| Enclosure | Aluminium |
| Dimensions (HxWxD) | 60 x 170 x 126 mm |
| Weight | ca. 1400g |
