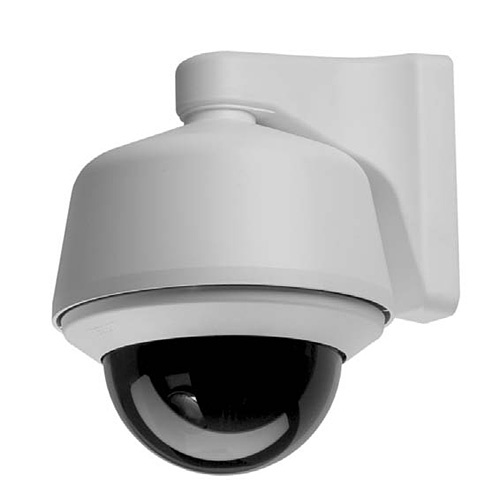

IS90 Camclosure® IS Series Indoor Mini Dome
The IS90 Series Camclosure Integrated Camera System integrates a camera and lens package into a small, versatile indoor enclosure that can be mounted directly to, or recessed into, a ceiling or wall. The IS90 Series features a three-axis camera and lens positioning system that is capable of 360 degrees of tilt, and 360 degrees of rotation.
Features
- Fully-Integrated Indoor Enclosure with Camera and Lens
- Single Model for Surface Mount and Recessed Ceiling Applications with 4S Adapter Plate
- 5 Camera Options: – Day/Night Wide Dynamic Range (WDR): Pixel-Based Imager for Accurate Color Representation, Progressive Scan – Day/Night High Resolution: 540 TVL – Wide Dynamic Range (WDR): Pixel-Based Imager for Accurate Color Representation, Progressive Scan – High Resolution Color: 540 TVL – Standard Resolution Color: 330 TVL
- Varifocal Lens Options: 3 mm to 9.5 mm, 9 mm to 22 mm
- Fixed Lens Options: 3 mm, 3.6 mm, 6 mm, 8 mm, 12 mm
- Includes Both Composite and Unshielded Twisted Pair (UTP) Outputs
- All Models Include 1 Smoked Bubble, 1 Clear Bubble, and
- 1 Liner
- Shipped Completely Assembled, Easy to Install
- 12 VDC or 24 VAC Operation, Autosensing
- Manual, 3-Axis (Pan/Tilt/Rotation) Positioning Allows Adjustment for Optimum Camera Rotation and Placement
- Housing Available in White or Black
- Service Connector for Video Output
