Product • 08.09.2010

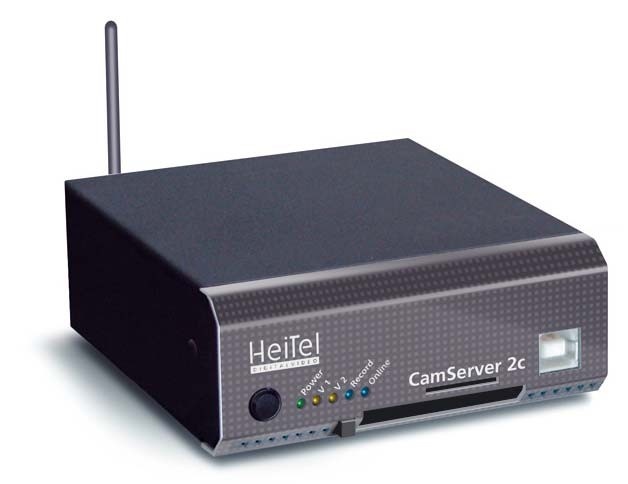

CamServer 2c
Digital video transmission system with recording for 1 analogue and 1 IP camera or 2 IP cameras
Optional 3G/GPS kit
- Recording onto optional Compact Flash card or external hard disk with adaptive track management for schedule-controlled permanent and motion recording, or contact-triggered event recording
- Suitable for mobile and stationary applications
- Recording, transmission and display of GPS data (only with optional 3G/GPS module)
- Real-time video recording depending on storage media
- Hybrid functionality with manufacturer-neutral compatibility for analogue and IP cameras
- Individually adjustable image resolutions up to 720 x 288 pixels and megapixel resolution with IP-cameras
- Integrated Multi-Unicast server supporting multiple IP network connections and simultaneous dial-up connections
- Integrated Web server for up to 4 IP connections for video transmission and camera remote control via PC/Smartphone/Handheld browser
- HTconnect enables unrestricted, but safe access over the Internet to Firewall protected video systems (also with dynamic IP-addresses) in private nets. Additionally HTconnect controls permanently the availability of the entire system from public net over private net to video transmitters
- Camera position authentication and camera specific alarming of video loss with analogue camera
- Integrated e-mail client for alarming up to two email addresses
- Definition of up to 5 privacy zones1 with the options live images or live and recorded images
- Precise recording of pre and post alarm images, individually adjustable to camera and event (with analogue camera)
- Event-triggered connections by alarm contact, motion detection (with analogue camera), serial command, technical alarm, and routine call
- Perfected for alarm verification and conformity with control centre applications
- Integrated interfaces for network, camera remote control, data transmission, and system integration
- Extensive remote control functions to control lighting, barriers, alarms, doors, or any relay-controlled devices
- Compact design, suitable for desk and wall mounting
- Multi-criteria evaluation of recordings via IP connection
- Live video transmission and simultaneous playback and recording (Triplex)
- Optional, bidirectional audio transmission and recording onto integrated storage medium
