The innovative GASC (Güntner Air cooler Slim Compact) and GACC (Güntner Air cooler Cubic Compact) air cooler series are among the new model ranges exhibited by Güntner at Chillventa under the motto: "Innovations for all fluids".
The intention here is to demonstrate that the new product generations are not only optimally equipped to fulfil all applicable regulations, but are also impressively well designed and optimised at a technical level to offer viable solutions for all refrigerants. The available heat exchanger coil combinations are optimised precisely to suit the required refrigerant and fluid in each case: The tube diameters and materials together with the fin geometries offer the ideal combination of performance and minimum tube volume.

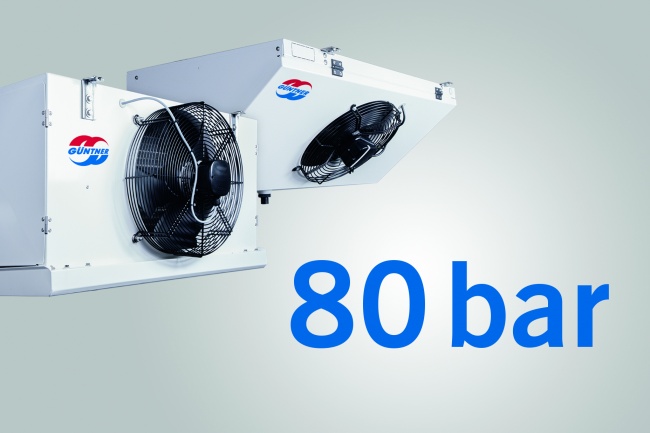

As is customary with Güntner, the new series also come with an extensive range of accessories. Despite the special know-how that goes on behind the scenes with the Güntner Product Calculator (GPC), the popular Güntner design software remains as simple as ever to use. The new air coolers are designed as standard for an operating pressure of up to 80 bar.
Güntner's GASC air cooler is a slim, ceiling-mounted unit and is available for HFC as well as CO2. With its flat, certified hygienic design and capacity range from 0.5 to 13 kW, it is an excellent cooler for the commercial refrigeration sector, especially for small capacities in cold rooms with low ceiling heights. The units can be installed quickly and come with a removable side cover. The overall casing structure is very easy to open and easy to clean. Multiple unit types for standard applications can also be delivered in next to no time as a storage unit.
With its highly efficient GACC (Güntner Air cooler Cubic Compact) air cooler in cubic design, Güntner offers a classic standard product for a wide range of applications in commercial refrigeration. The GACC comprises a highly efficient heat exchanger with a staggered tube pattern in compact casing. The different types of unit together cover a capacity range from 1.5 to 69 kW and offer numerous application benefits. The GACC can be accessed easily for inspection and maintenance work and can be cleaned quickly and simply thanks to an easy-to-open side cover and hinged components such as inner and outer tray. The optional Güntner Streamer allows particularly high air throws to be achieved in the cold room.
The innovative air cooler series in a video report from Chillventa:
Source: Güntner GmbH & Co. KG
